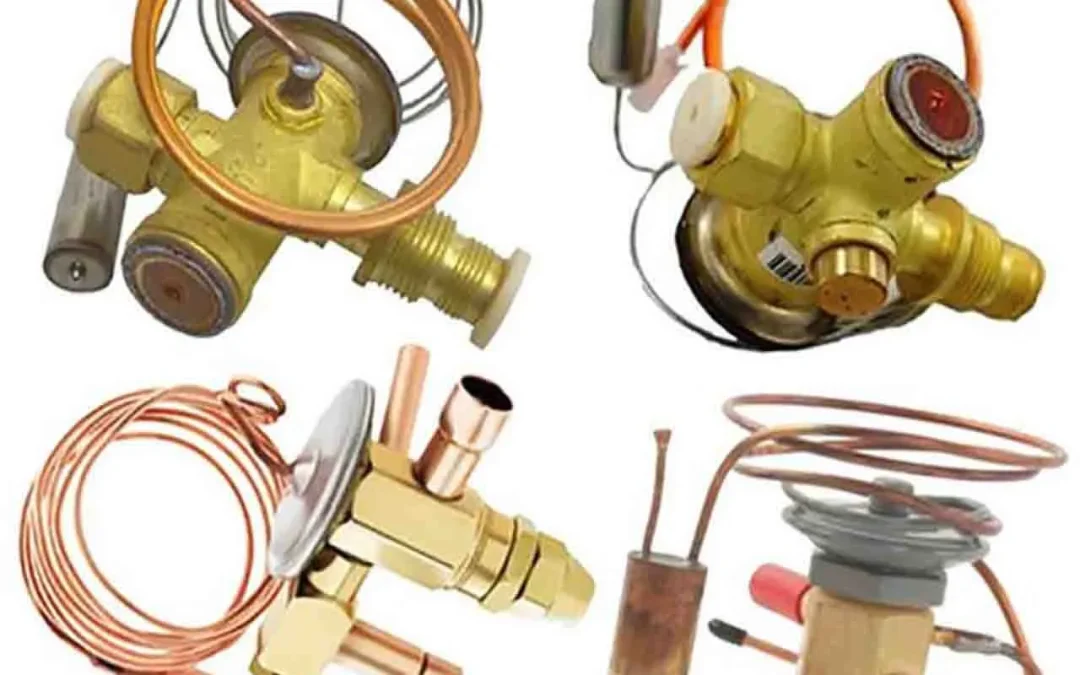

Thermostatic Expansion Valve (TEV):
Among the many varieties of expansion valves used in HVAC systems, the thermostatic expansion valve (TEV) stands out. The versatility and dependability of TEVs make them ideal for a variety of uses, from small portable units to massive central air conditioning systems.
· Mechanism and Operation:
A thermistor bulb, which detects and controls temperature, is the key component of a TEV’s mechanical valve. It is common practice to place this bulb at the evaporator coil’s outlet to keep an eye on the refrigerant vapour’s temperature. Based on these temperature readings, the TEV modifies the refrigerant flow for maximum cooling efficiency.
As the evaporator coil of an air conditioner runs, the TEV detects and reacts to variations in the temperature and pressure of the refrigerant. To keep the evaporator coil at the set temperature, the TEV raises the refrigerant flow rate. On the flip side, the TEV lowers the refrigerant flow rate as the system cools and the pressure drops. This real-time adjustment keeps the refrigerant from being under or overheated, allowing for more efficient and consistent cooling.
· Applications:
Because of their adaptability and simplicity of adjustment, TEVs find extensive application in a variety of HVAC systems. Systems requiring exact regulation of refrigerant flow, like commercial, industrial, and household air conditioners, benefit greatly from their use.
Float Valves:
One such kind of expansion valve utilized in HVAC systems are float valves. The efficiency and ease with which they regulate the amount of refrigerant in the evaporator and condenser coils have earned them a stellar reputation.
· Mechanism and Operation:
A high-side float and a low-side float are the two small floats that are used to control a float valve. The evaporator coil contains the low-side float, which is submerged in the liquid refrigerant, while the condenser coil contains the high-side float. These floats control the levels of the refrigerant by rising and falling in response to the liquid refrigerant level.
To keep the evaporator coil suitably flooded with refrigerant, the low-side float keeps the liquid level constant. To avoid the build-up of too much refrigerant, the high-side float regulates the levels of the fluid within the condenser coil. Additionally, the backflow of refrigerant, which might flood the evaporator and reduce cooling efficiency, is prevented by the use of float valves.
· Applications:
Air conditioning systems that demand automatic and dependable regulation of refrigerant levels often use float valves. They are especially helpful in systems with limited space where accurate management of the refrigerant is essential to preserving system performance and averting harm.
Automatic Expansion Valve:
In contrast to thermostatic valves (TEVs) and float valves, automatic expansion valves (AEVs) use a separate mechanism to regulate the flow of refrigerant. When the internal pressure of an AEV varies, a diaphragm controls the flow of refrigerant.
· Mechanism and Operation:
The diaphragm of an automatic expansion valve can expand and contract in reaction to variations in the pressure of the refrigerant. The diaphragm expands in response to rising pressure, allowing more refrigerant to flow through the valve. The flow of refrigerant is reduced as the diaphragm compresses in response to a drop in pressure.
Although AEVs provide a simple way to regulate the flow of refrigerant, they do have some restrictions. In systems where the pressure levels fluctuate, the diaphragm mechanism may not respond quickly enough to the changes, leading to inefficient cooling. This means AEVs won’t work as well in situations where the refrigerant pressure fluctuates a lot.
· Applications:
In smaller air conditioning systems, when pressure variations are minimal, automatic expansion valves are often used. In large-scale systems, where exact regulation of refrigerant flow is crucial for optimum performance, they are less prevalent.
FAQs:
· Can Expansion Valves Fail Intermittently?
Yes, a variety of factors can cause failures in expansion valves. Refrigerant flow interruptions can be caused by temporary problems like debris or moisture contaminating the refrigerant, which can clog the valve. Variations in outside temperature fluctuations may also affect valve performance, resulting in uneven cooling outcomes.
· What Role Do Expansion Valves Play in the Efficiency of HVAC Systems?
Expansion valves are essential for maintaining optimal functioning and controlling refrigerant flow in HVAC systems. By assisting in the achievement of ideal superheat levels, this valve helps avoid problems such as inadequate cooling or compressor damage. Expansion valves let building occupants enjoy constant comfort and minimize operating expenses by improving system efficiency and consuming less energy.
· What Common Errors Occur During the Installation or Upkeep of Expansion Valves?
Frequent errors made when installing or maintaining expansion valves can affect the dependability and performance of HVAC systems. Inadequate superheat setting adjustments during installation can result in ineffective cooling and decreased system performance. When routine maintenance chores like cleaning and inspections are neglected, dirt or debris build-up can clog valves, impairing refrigerant flow and system performance.
· When upgrading expansion valves in HVAC systems, what should you take into account?
To guarantee compatibility and optimize performance, several criteria should be taken into account while upgrading HVAC systems’ expansion valves. Examine the cooling capacity requirements of the current system and assess whether the type and size of valves already in use adequately meet these needs. To guarantee smooth integration and ideal performance, assess how well-suited new expansion valve options are for the refrigerant type and operational characteristics of the system.
· How Do HVAC System Expansion Valves Adjust to Changing Load Conditions?
In HVAC systems, expansion valves modify refrigerant flow rates in response to changing system needs in real-time. The valve raises refrigerant flow to maintain ideal superheat levels and optimize cooling efficiency during times of high cooling demand. On the other hand, the valve lowers refrigerant flow under reduced load circumstances to guard against overcooling and guarantee energy-efficient operation.
