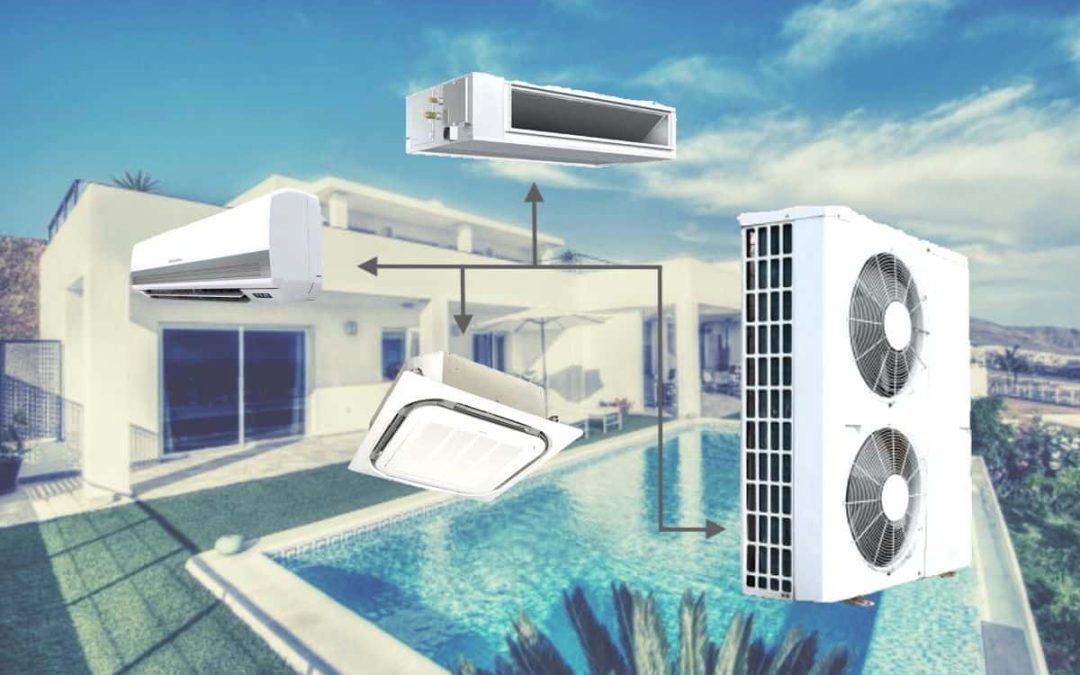

Optimal cooling and heating performance is provided by VRV systems, which are built around four essential components. This article will take a closer look at each of these parts so you can understand VRV air conditioning systems better.
Outdoor Unit (Condensing Unit):
The VRV system relies on the outside unit, which is also called the condensing unit. Compressor, condenser coil, and other heat exchange essentials are housed in it. An essential part of the refrigeration cycle, the compressor increases the pressure and temperature of the refrigerant gas by compressing it. After passing through the condenser coil, the gas undergoes a transformation from a gaseous to a liquid state, releasing its heat to the surrounding air.
The outside unit of a VRV system typically has cutting-edge variable-speed compressors that change their speed according to the demand for cooling or heating. Significant energy savings and improved comfort levels are achieved through the system’s variable-speed operation, which allows it to precisely match the load requirements. Some outdoor units also have inverter technology, which keeps the compressor speed constantly adjusted to keep the temperature set, further optimizing energy efficiency.
Indoor Units (Fan Coil Units):
It is the job of indoor units, sometimes called fan coil units, to bring conditioned air into indoor areas. You have a lot of design and installation options with these units because they come in multiple configurations, such as floor-standing, wall-mounted, and ceiling-mounted. To control the airflow and temperature, each indoor unit has a fan, heat exchanger, and expansion valve.
The refrigerant absorbs heat from the air within the indoor unit as it changes phases from liquid to gas in the heat exchanger of the indoor unit. After cooling the air, the fan returns it to the room, making everyone more comfortable. Extra features, such as built-in filters for air purification and quiet operation modes for noise-sensitive situations, can be added to indoor units depending on the specific application and requirements.
Refrigerant Piping:
The refrigerant is transferred from the outside to the inside of the building using refrigerant pipes. Because of its high thermal conductivity and long lifespan, copper is a common material for these pipes. Insulation, valves, and connectors are all part of the refrigerant piping system, which is designed to work efficiently and reliably.
The capacity to use longer refrigerant piping lengths is a characteristic of VRV systems, giving designers and installers greater flexibility. In big or multi-story buildings, where space limitations or architectural factors could restrict the positioning of outside units, this adaptability is very beneficial. To further improve energy efficiency and environmental sustainability, VRV systems use cutting-edge refrigerant control technology to enhance system performance while minimizing refrigerant charge.
Control System:
The control system is like the nervous system of an air conditioning system; it tells all the parts to work together so that the room is as comfortable as you want it to be. Featuring cutting-edge monitoring and optimization features, along with user-friendly interfaces, modern VRV systems come with complex control interfaces.
Users may optimize energy savings and comfort by setting temperature setpoints, adjusting fan speeds, and scheduling operation periods through the control system. As an added bonus, some VRV systems have smart technologies built in that let users operate and monitor the system from anywhere using their smartphones or other internet-connected devices.
The control system is responsible for managing the overall functioning of the system as well as the control of individual units; this guarantees that the indoor and outdoor units work in perfect harmony to keep performance at its peak. Precise temperature management and energy efficiency are provided in real-time by means of sophisticated algorithms and sensors that constantly assess the surrounding environment and modify system settings appropriately.
Oil Management System:
If you want your VRV air conditioner to run smoothly and reliably, you need to lubricate the compressor and any other moving components. This is accomplished by VRV systems using sophisticated oil management systems, which control and monitor the flow of lubricating oil in the refrigeration system. These systems keep the compressor well-oiled all the time, which delays wear and prolongs the life of the system’s components. Oil management that is both effective and efficient helps boost system performance and saves energy.
Heat Recovery System:
A heat recovery feature found in many VRV systems allows for simultaneous heating and cooling within the same system. This is made possible by use of an advanced heat exchanger system that transfers waste heat from places that need cooling to places that need heating. Heat recovery systems improve system efficiency and decrease energy consumption by making better use of thermal energy that would otherwise go to waste.
Refrigerant:
Last but not least, the performance and environmental impact of VRV air conditioning systems are greatly influenced by the choice of refrigerant. R-22 and other fluorocarbon-based refrigerants were once standard in heating, ventilation, and air conditioning systems. More eco-friendly alternatives are gradually replacing these refrigerants because of their ozone-depleting and global warming potential.
Manufacturers have shifted to using next-generation, less harmful refrigerants like R-410A and R-32 in response to environmental regulations and initiatives. These refrigerants are the best option for VRV systems and other HVAC applications since they have better thermodynamic properties and produce less greenhouse gas emissions.
Expansion Valves:
Found at several locations throughout the refrigerant circuit, expansion valves are essential parts. To maintain the ideal pressure and temperature for effective heat exchange, these valves control the flow of refrigerant into the evaporator coils. Electronic or thermal expansion expansion valves are used in VRV systems; they allow for extremely fine regulation of refrigerant flow rates in response to actual operating conditions. Because of this, the system can dynamically adjust to the cooling needs, which improves comfort and reduces energy use.
