Outdoor Unit (Condensing Unit):
The outdoor unit, which is also called the condensing unit, is the central component of a VRF system. There are fan(s), compressor(s), and condenser(s) within. Condensers help move heat from the refrigerant to the outside air, and compressors raise the pressure of the refrigerant. The cooling process generates heat, which the fan(s) aid in dissipating.
Using variable-speed compressors, modern VRF systems can precisely modulate heating and cooling output according to demand. When contrasted with conventional HVAC systems, which run at constant rates, this leads to considerable energy savings.
Indoor Units (Fan Coil Units):

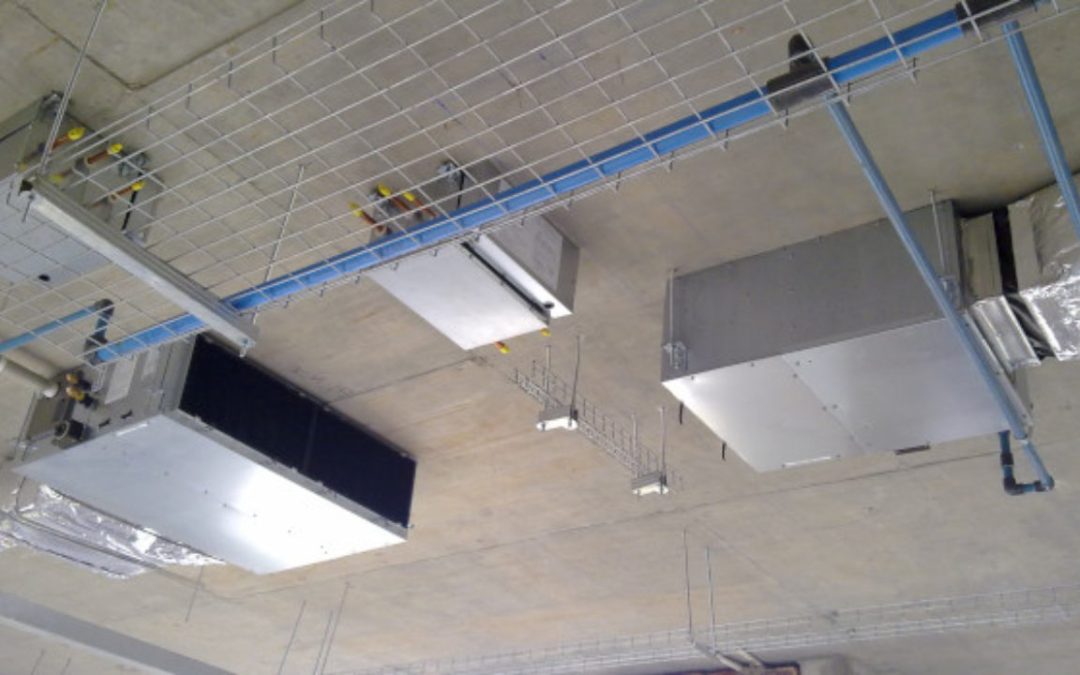

The task of dispersing heated or cooled air is carried out by indoor units, which are also called fan coil units (FCUs). These units are located within the conditioned space. Refrigerant pipes link each interior unit to its outdoor counterpart. You have a lot of design and installation options with FCUs because they come in many varieties, such as wall-mounted, ceiling-mounted, and concealed ducted units.
The ability to give separate zone or room temperature management is a major benefit of VRF systems. A number of indoor units, each managed by a separate central or zone controller, are used to accomplish this. Each room has its own temperature control, so people may be more comfortable and save electricity.
Pipe System for Refrigeration:
The refrigerant piping system forms a closed-loop system by linking the outside unit to the indoor units. This allows the refrigerant to circulate. Insulated copper pipes make up this system that carries the refrigerant from the outside units to the inside ones.
To maximize efficiency and performance, the VRF system relies on well-planned and executed refrigerant pipework. The efficient flow of refrigerant and the reduction of energy losses are guaranteed by pipe sizing, insulation, and routing. Branch selectors and distributors may also be part of the pipe network, which allows for management of the refrigerant flow to certain interior units.
Control System:
In a variable refrigerant flow (VRF) air conditioning system, the control system is like the brain; it regulates the operation of both the interior and outdoor units to keep the temperature where it needs to be while minimizing energy use. Accurate temperature control and system efficiency are achieved by modern VRF systems through the use of sophisticated control algorithms and communication protocols.
User interfaces, zone controllers, and a central controller make up the control system. Zone controllers provide for more precise control and feedback within specific rooms or zones, while the central controller oversees and supervises the whole system’s performance. Guests may control the temperature and see how the system is doing with the help of user interfaces like thermostats or smartphone apps.
The control system might have temperature control, scheduling, fault diagnosis, and energy monitoring capabilities, among others. As a result of these capabilities, building owners and managers may optimize comfort levels, track energy usage, and solve issues, all of which contribute to improved operational efficiency and cost savings.
Expansion Valves:
An essential part of variable refrigerant flow (VRF) air conditioning systems are expansion valves, which control the amount of refrigerant that may be pumped into the indoor units. As the refrigerant flows into the interior units’ evaporator coils, these valves regulate its temperature and pressure. Matching the refrigerant flow to the load requirements of each indoor unit is achieved by appropriately sized and programmed expansion valves, ensuring optimal performance and efficiency of the system.
Two common varieties of expansion valves are thermal expansion valves (TXVs) and electronic expansion valves (EEVs). To precisely regulate the flow of refrigerant, EEVs use electronic control signals to change the opening of the valve. In contrast, TXVs control the valve position by monitoring changes in pressure and temperature. Both kinds of expansion valves work to keep the evaporator’s superheat level where it should be, which helps with heat exchange and stops problems like frost or compressor damage.
Heat Recovery Systems:
Depending on the model, variable refrigerant flow (VRF) air conditioning systems can either cool or heat certain areas of a building at the same time. In order to redirect surplus heat from cooling to heating, heat recovery systems use a three-pipe arrangement that allows for the movement of heat between indoor units.
The branch selector box is an essential part of a heat recovery system because it regulates the flow of refrigerant between the indoor units when cooling, heating, or both are being used at the same time. Particularly in buildings with varying heating and cooling loads throughout the year, VRF systems can enhance energy efficiency and save operating costs by utilizing heat recovery technology.
Air Filters and Filtration Systems:
To keep the air within a building clean and free of debris, dust, and other pollutants, VRF air conditioning systems rely on filtration systems and air filters. Indoor units have air filters that trap allergens, dust, and pollen and keep them from recirculating in the air.
If you want your system to work at its best and keep the air inside your home clean, you need to change the air filters regularly. Restricting airflow, decreasing efficiency, and increasing energy consumption are all possible outcomes of clogged or unclean filters. To further improve the filtration effectiveness and pollutant removal, some VRF systems incorporate advanced filtration technologies like electrostatic filters or activated carbon filters.
Backup Power Systems:
A VRF air conditioning system with a backup power supply can keep running even in the event of a power outage, which is very useful in places where constant heating or cooling is essential. If the utility power goes out, the VRF system can still get its electrical power from backup systems like generators or UPS units.
By integrating these backup power systems with the VRF system’s control system, vital cooling or heating services can be kept operational until regular power is restored, even in the event of a power loss. Building owners can reduce the likelihood of downtime and keep occupants comfortable by installing backup power options. This is especially important for commercial or healthcare buildings where the HVAC system must operate continuously.
